Adapt to evergy descaling width
No impact loss
External control – no piping on the spray bar
Medium Supply (process water)
Supply controlwater. Internal control bores, no costly piping!
Segmental exchange of weareplates.
Racks and supports are protected by special liner plates.
Top / Bottom Spray Bar & rackall stainless steel.
Intermediate zone = min. plate width (permanent spraying)
According to plate width the nozzles in the outer zones are switched additionally
Wear reduce : the nozzles can be switched according to plate width.
Energy saving: at approx. 225 bar @ 87 l/min = approx. 45 kW per nozzle.
Flexible: thedesign / installation space can be adjusted accoring to customers requirements.
Safety: external control, nopiping/ electricityon thespray bar.
Long-lasting: theHP²scale down - systems are successful in operation for several years.
Basic Know How: Use of reliable HP²duraseal Technology.

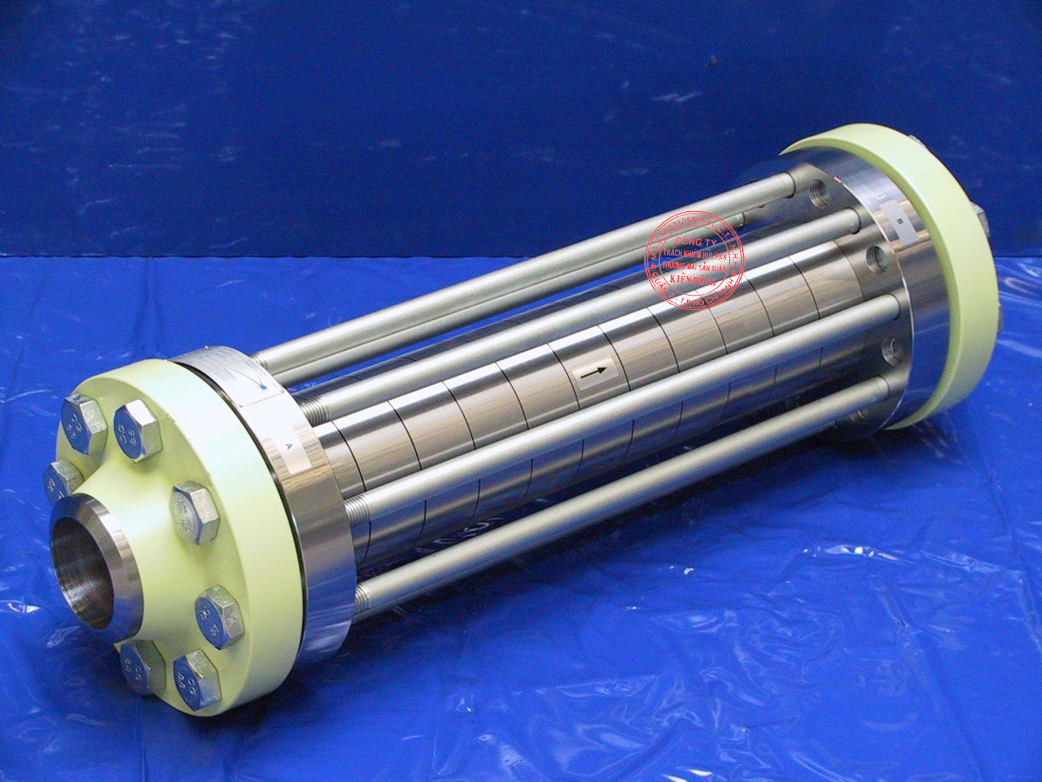

HP²scaledown Pump Protection Valves / Minimum Flow Valves
Optimal designed to pump capacity curve
High service life
