Evertz Selective Multizone
Field Of Application:
  • Aluminium Hot & Cold Rolling Mills

  • Steel Rolling Mills

  • Copper Rolling Mills

Standard operating conditions:
  • Media: emulsion, rolling oil (kerosene)

  • Pressures: Standard 0 to 10 bar (max up to 16 bar)

  • Nominal widths spray valves: DN5, DN8, DN12, DN16

  • Temperatures: max. Operating temperature 0 to + 70 ° C (Hot Edge and + 100 ° C.); Max. Ambient temperature: 0 to + 60 ° C

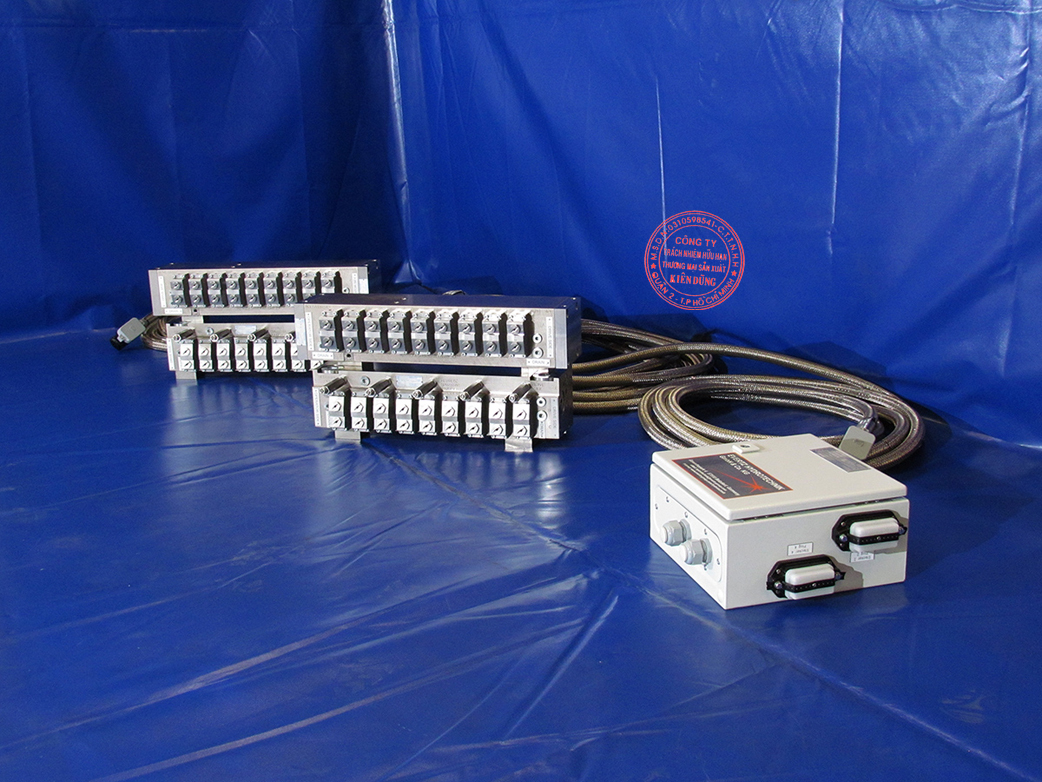

Taking into account your individual requirements and specifications we design and manufacture complete systems comprising spray valves with integrated spray nozzle, spray bars and control cabinets incl. The major bus connections.

In the field of hot and cold rolling plants, the multi-zone cooling is used for the production of steel, aluminum and non-ferrous metal sheets. This 2/2-way spray valves with the division 13, 26 or 52mm are arranged over the entire roll width to selectively cool the rolls in certain areas and thus to regulate the sheet thickness in a narrow tolerance range.

Fast switching, reliable spray valves are necessary for this process, as they are custom designed, manufactured and sold by Evertz HYDROTECHNIK.

The valves can be piloted both by means of its own medium as well as foreign media.

Evertz Selective Multizone Coolectro 1
Coolectro®
  • Mill: 6Hi Aluminium CRM

  • System: EHSd (electro-hydraulical system direct)

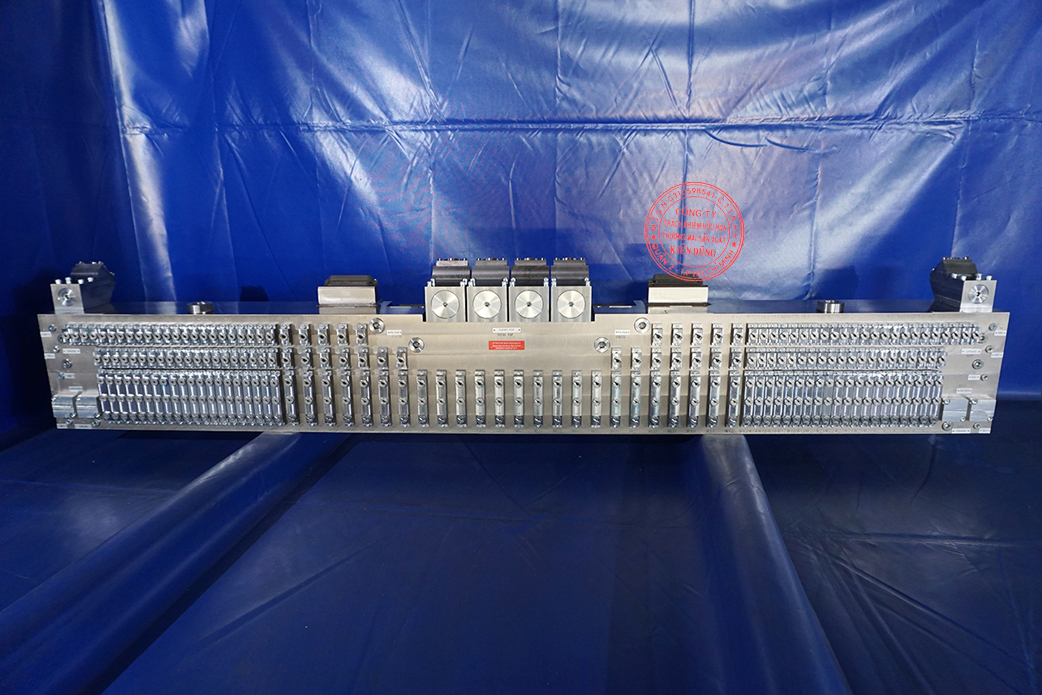

  • Spray Bar: Five Row Spray Bar incl. gap lubrication, roll cooling, cool- & hot edge

  • Spray Valve: Coolectro®

Evertz Selective Multizone Phragmspray 1
Phragmspray®
  • Mill: 4Hi Aluminium HSM

  • System: EPSd (electro-pneumatical system direct)

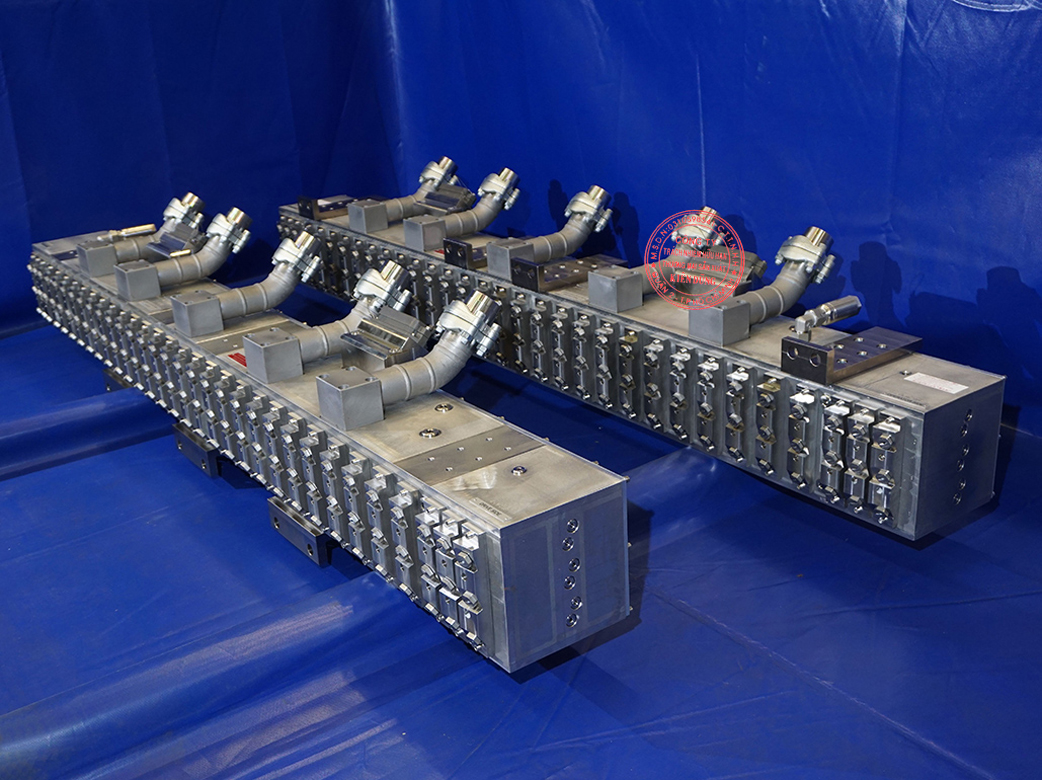

  • Spray Bar: Tripple Row incl. gap lubrication & roll cooling

  • Spray Valve: Phragmspray®

Evertz Selective Multizone Phragmspray 2
Phragmspray®
  • Mill: 4Hi Aluminium HSM

  • System: EPSr (electro-pneumatical system remote)

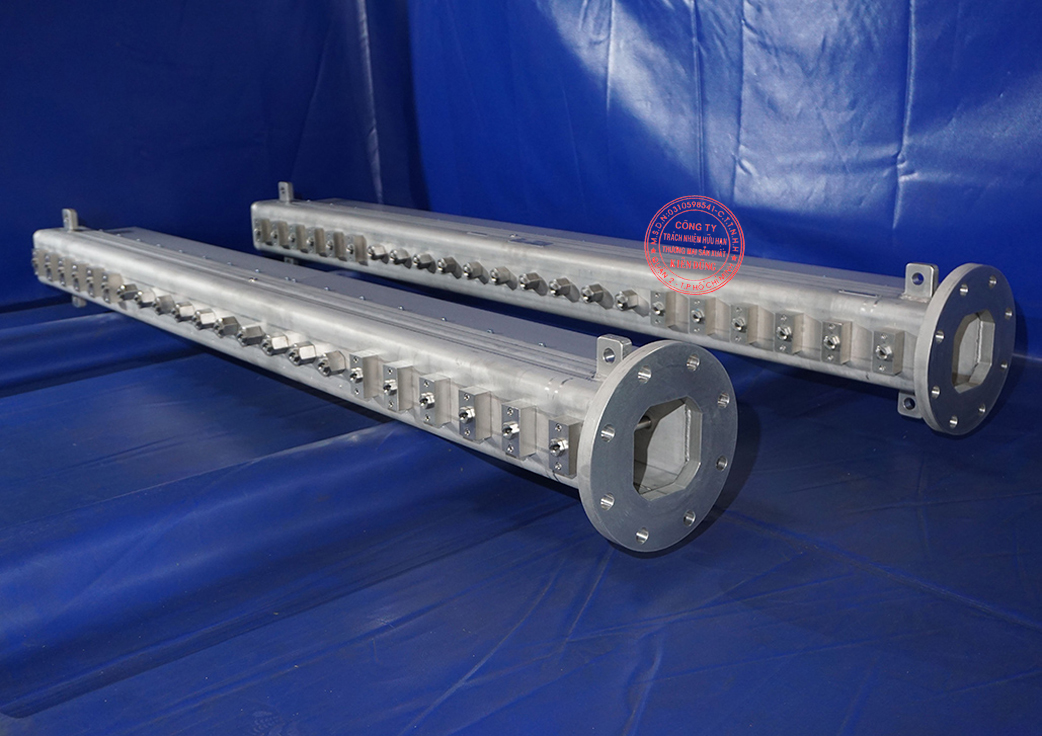

  • Spray Bar: Single Row for strip cooling & intermediate mill cooling

  • Spray Valve: Phragmspray®

Evertz Selective Multizone Coolectro 2
Coolectro®
  • Mill: 6Hi Copper

  • System: EHSd (electro-hydraulical system direct)

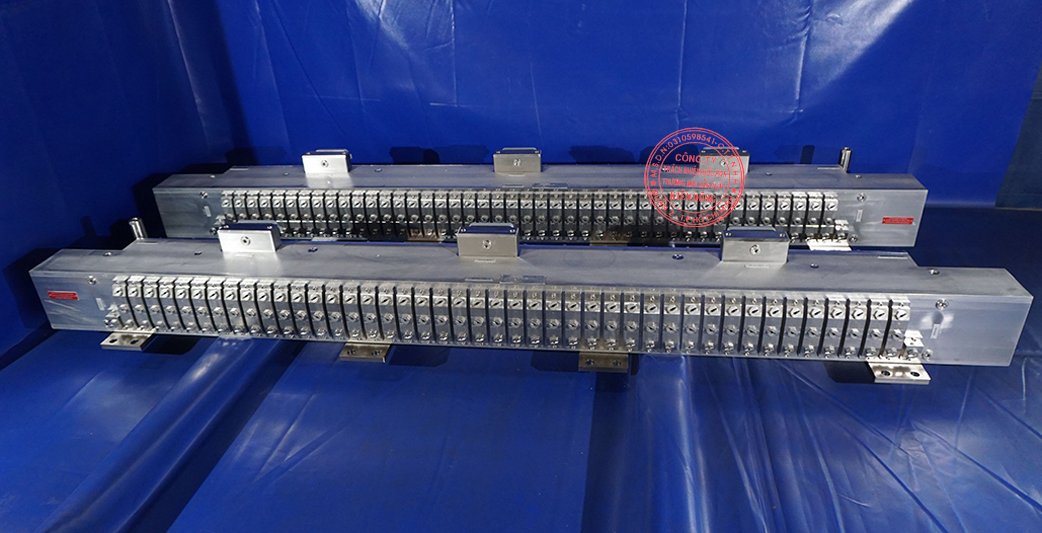

  • Spray Bar: Double Row incl. gap lubrication & roll cooling

  • Spray Valve: Coolectro®

Evertz Selective Multizone Phragmspray 3
Phragmspray®
  • Mill: 4Hi Aluminium HFM

  • System: EPSr (electro-pneumatical system remote)

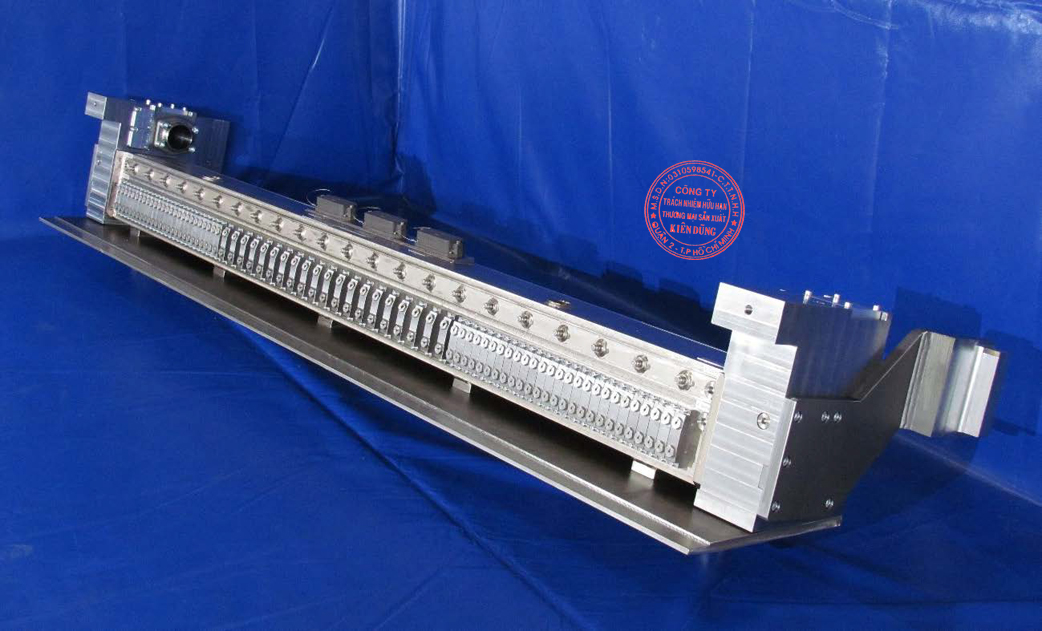

  • Spray Bar: Tripple Row incl. gap lubrication & roll cooling

  • Spray Valve: Phragmspray®

Evertz Selective Multizone Steel Cold Reversing Mill
Steel Cold Reversing Mill
  • Mill: Steel Cold Reversing Mill

  • System: EPSr (electro-pneumatical system remote)

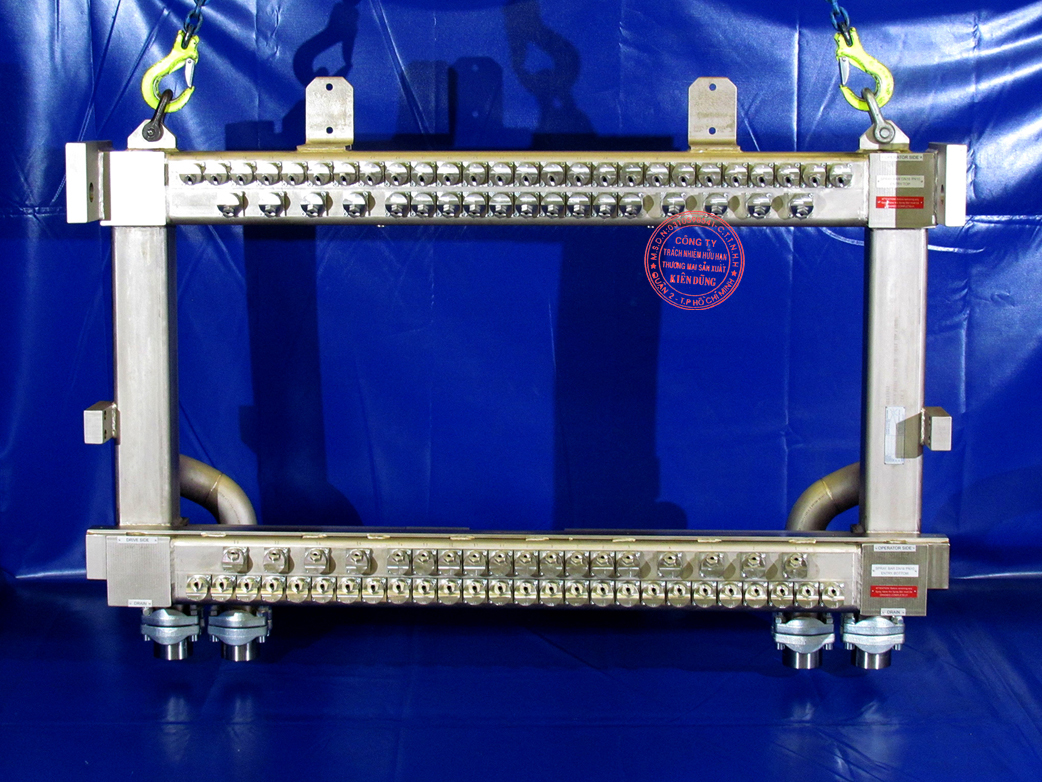

  • Spray Bar: Double Row Spray Frame incl. gap lubrication & roll cooling

  • Spray Valve: Pistonspray®

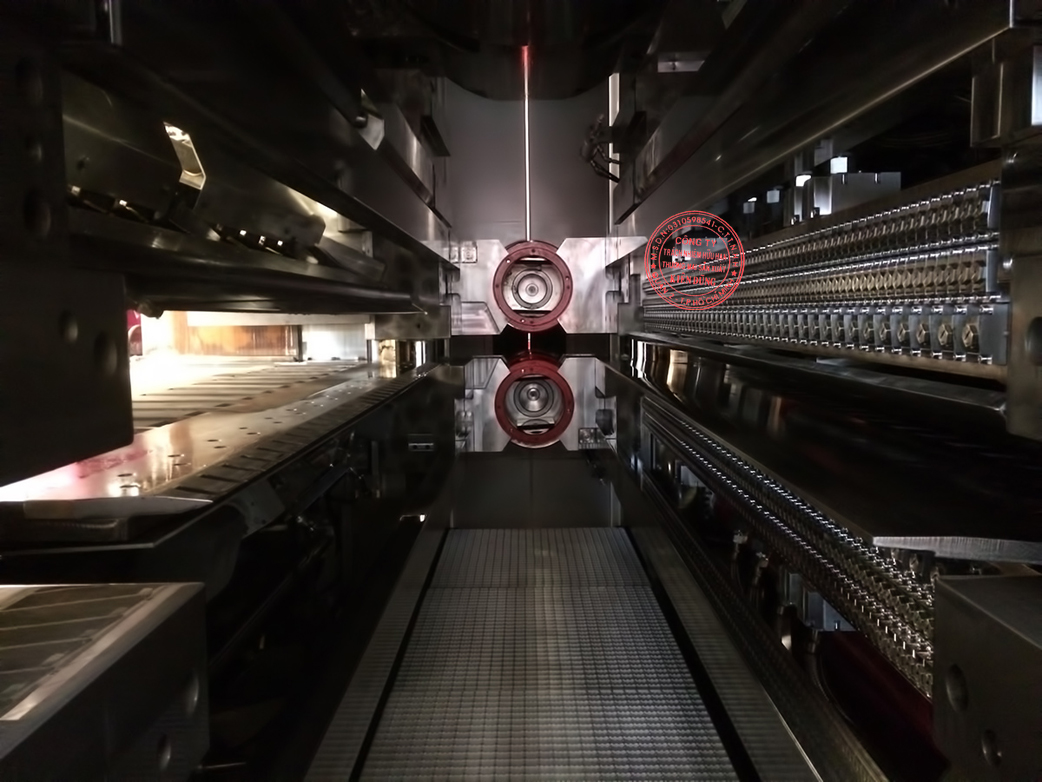

Evertz Selective Multizone View Inside A 6Hi Aluminium CRM Mill
View Inside A 6Hi Aluminium CRM Mill
