Descaling Systems
Basis for Evertz Hydrotechnik descaling valves and descaling systems constitutes our basic valve program:
-
2/2 way cartridge valves
-
2/2 way built check valves
-
Check valve inserts (manual or motorized)
-
Storage completion valve inserts
-
3/2 way pilot valves
for the following standard operating conditions:
-
Media: Water, water-oil emulsions, synthetic oils, corrosive media, hydraulic oil, compressed air
-
Pressures: Standard 0 to 350 bar (max up to 800 bar)
-
Nominal sizes: DN3 to DN250
-
Temperatures: max. Operating temperature 0 to + 70 ° C; Max. Ambient temperature: 0 to + 60 ° C
Furthermore, a number individually to the particular application developed special valves available:
-
Pressure relief / pressure reducing valves
-
Proportional valves
-
pilot operated check valves
-
and much more
![Descaling valve](https://bizweb.dktcdn.net/100/278/568/files/evertz-hydrotechnik-descaling-valve.jpg?v=1627549098697)

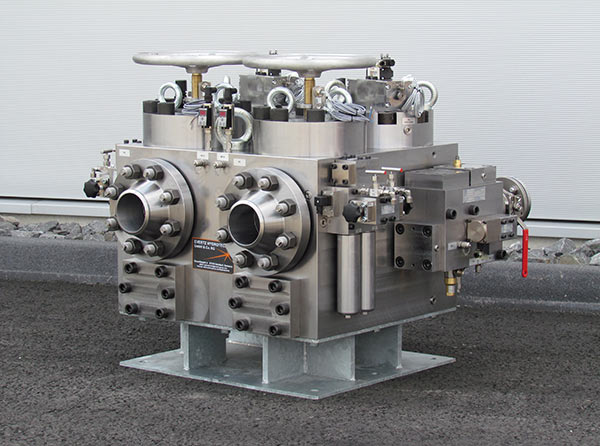

Descaling valve, for example, as
-
Single valve (switching valve)
-
Descaling valve unit (switching valve + check valve)
-
Descaling valve unit as a redundant system (see photo)
![Descaling](https://bizweb.dktcdn.net/100/278/568/files/evertz-hydrotechnik-descaling.jpg?v=1627549098657)

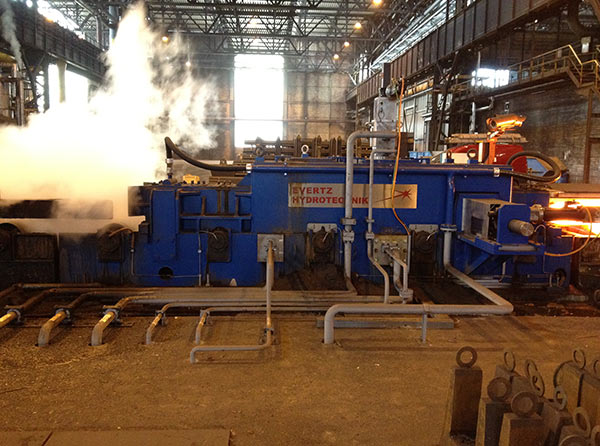

Descaling, e.g. incl.
-
Auto. Width adjustment for different billet widths
-
individually switchable nozzle
![Memory port valve](https://bizweb.dktcdn.net/100/278/568/files/evertz-hydrotechnik-memory-port-valve.jpg?v=1627549098770)

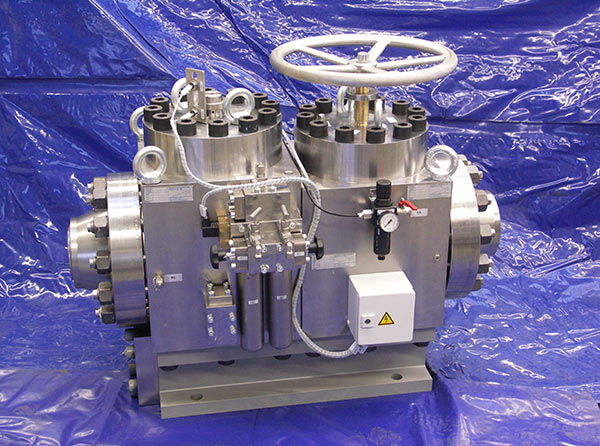

Memory port valve, for example, as
-
Single valve (switching valve)
-
Memory close valve unit (switching valve + check valve)
![High-pressure reservoir](https://bizweb.dktcdn.net/100/278/568/files/evertz-hydrotechnik-high-pressure-reservoir.jpg?v=1627549098730)

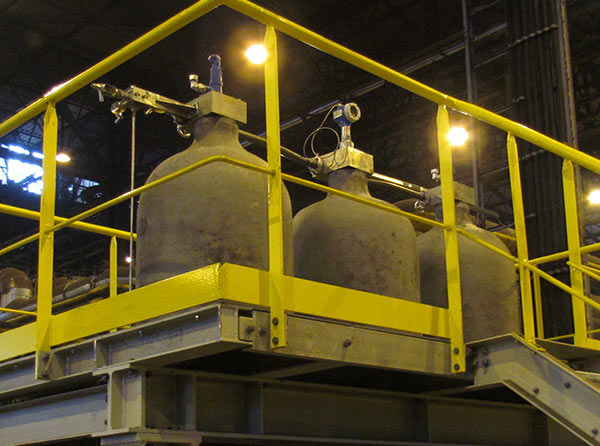

High-pressure reservoir, e.g. incl.
-
Radar level measurement
![Pump circulation valve](https://bizweb.dktcdn.net/100/278/568/files/evertz-hydrotechnik-pump-circulation-valve.jpg?v=1627549098850)

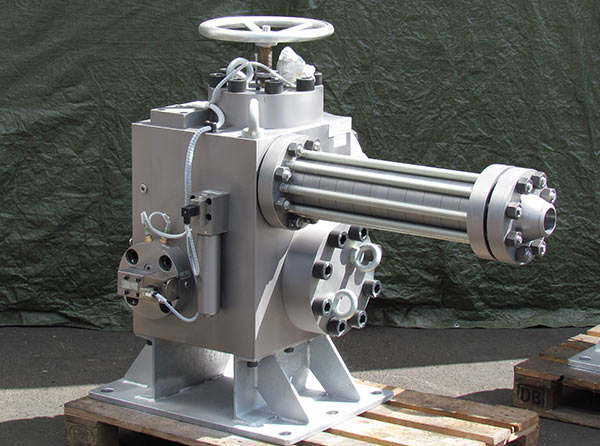

Pump circulation valve, for example, incl.
-
2/2 way check valve
-
manual shutoff valve
-
2/2 way switching valve
-
minimum quantities throttle
![Other accessories](https://bizweb.dktcdn.net/100/278/568/files/evertz-hydrotechnik-other-accessories.jpg?v=1627549098810)

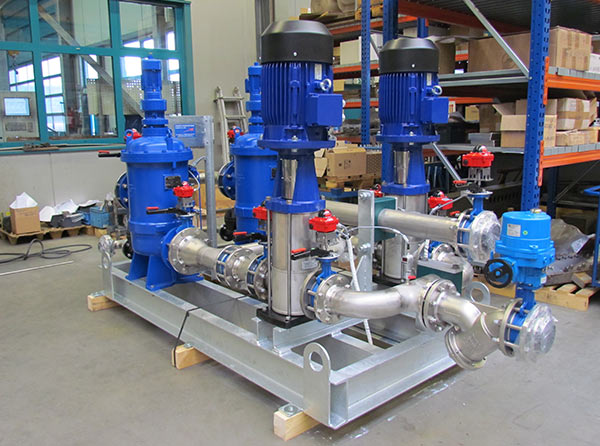

Other accessories, such as
-
Electrical control
-
High Pressure Pumps
-
Remove station
