Product Name |

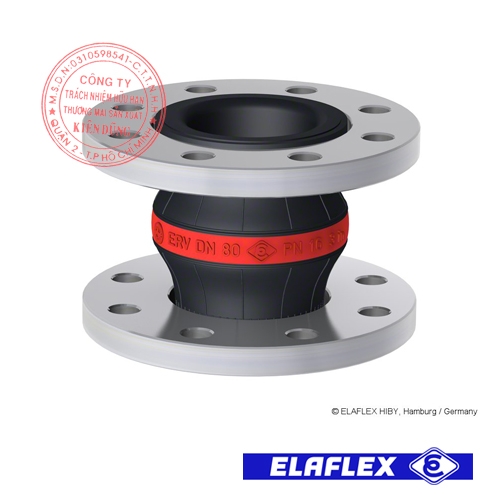

ERV-R 'Red Band' |
Short Description |
With drinking water approval |
Description |
RED BAND expansion joints for water, drinking water (approval DVGW W 270 as well as ACS, conform to FDA), cold and warm waste water, seawater, cooling water, also with chemical additives for water treatment, low concentrated acids and alkalis, salt solutions, technical alcohols, esters and ketones.
Can be used in oily atmospheric environments, e.g. engine rooms.
Temperature range (depending on medium) -40° C up to +100° C, temporarily up to +120° C.
Electrically dissipative.
Not suitable for all kinds of mineral oil products, cooling water with added oil containing corrosion preventatives, oily compressor air. |
Cover |
EPDM, ozone proof, heat resistant |
Reinforcement |
PA textile cord, Butyl rubberized |
Liner |
Butyl (IIR) / EPDM, seamless, low permeation |
Temperature |
min. -40ºC, max. +100ºC, temporarily +120ºC |
Marking |
Red band, ERV DN .., PN .., production date |
Flange |
Swiveling, DIN PN10/16, carbon steel, zinc plated |
Size |
DN25 (1") to DN1000 (40") |
Length |
BL130mm, BL150mm, BL160mm, BL175mm, BL200mm, BL250mm, BL260mm, BL300mm |
Certificates |
Foodstuff Manufacturer Declaration. Approvals: DNV · GL, Lloyd´s Register, Bureau Veritas, RINA Services S.p.A., American Bureau of Shipping, China Classification Society, Bundesamt für Wehrtechnik und Beschaffung, Deutscher Verein des Gas- und Wasserfachs, Attestation de Conformité, Water Regulations Advisory Scheme. |
