Bạc lót tự bôi trơn CNP-10 Carbon Steel (Self Lubricating Bearings)

Tìm hiểu về Bạc lót tự bôi trơn nhóm CNP-10 Carbon Steel Self Lubricating Bearings

» Bạc lót tự bôi trơn nhóm CNP-10 (Carbon Steel Self Lubricating Bearings) được làm từ tấm thép carbon thấp chất lượng cao, bề mặt trượt là sự thiêu kết xen kẽ giữa đồng xốp rỗng và hợp chất PTFE. CNP-10 mang đặc tính: tự bôi trơn tốt, ít hao mòn, ma sát thấp, tính trượt tốt, độ ồn thấp.

Ứng dụng

1. Working under oilless or minim oil state, maintenance free or just need a little maintenance.

2. Resist Abrasion, low coefficient of friction long operating life.

3. Operation in: -195ºC ~ +280ºC.

4. Good mending, low-noise, non-pollution.

5. Thin-walled structure, light in weight, which can reduce the machine to small size.

6. Forming a transferred film during operation to protect shaft and trouble free.

7. Low demand to the shaft even no surface hardness treatment, which lower the cost of the mating components.

8. No absorption to water/oil, small coefficient of Thermal emption, good thermal conductivity and size stability.

9. The back of the steel strip can be plated with various metals, anti-corrosion. The products have been used in sliding components of different machines, such as auto machines, piston pump, gear pump, textile machine, auto-sides machine, Injection Machine, sports Machine office equipment.

Bảng thông số kỹ thuật vật liệu (Technical Data)

Max load Static 250N/mm2
Very low speed 140N/mm2
Roatating oscillating 60N/mm2
Max. PV (dry running) Short-term operation 3.6N/mm2.m/s
Continuous operation 1.8N/mm. m/s
Temp. limit -195ºC ~ +280ºC
Friction coefficient 0.05 ~ 0.20μ
Max. speed Dry running 2m/s
Hydrodynamic operation > 2m/s
Thermal conductivity 42 W(mxk)-1
Coefficient of thermal expansion 11×10-6 K-1

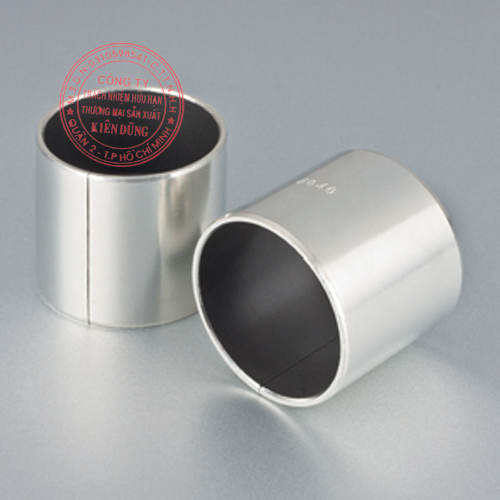

CNP-10 Carbon Steel

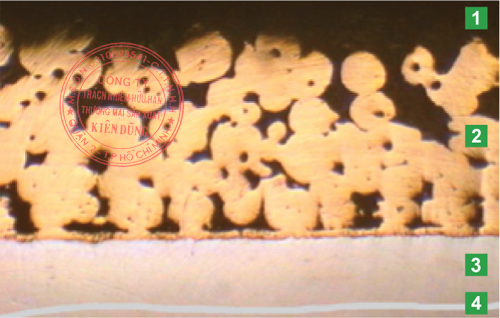

CNP-10 Carbon Steel Material Structure

Cấu trúc vật liệu

1.PTFE with mixture 0.01~0.03mm.
2.Porous bronze 0.2~0.3mm.
3.Steel backing 0.7~2.3mm.
4.Tin-plating 0.005mm or copper plating 0.008mm.

Kích thước

» Tiêu chuẩn: Sleeve Bearings, Flange Bearings, Compound Thrust Washer, Strip

» Phi tiêu chuẩn: Sleeve Bearings, Flange Bearings, Compound Thrust Washer, Strip, Bearings Bushing, Wear Strip, Steel combine Units.
