Tìm hiểu về Bạc đồng tự bôi trơn nhóm JF-800 Bimetallic-Wrapped (Self Lubricating Bearings)

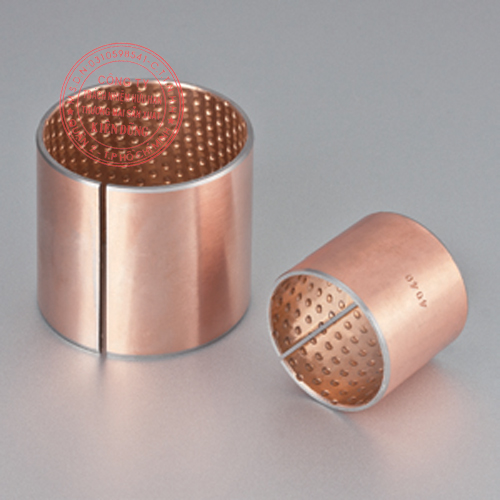

» JF-800 Bimetallic self-lubricating bearing used high quality low-carbon steel plate as base, sintered porous bronze as its surface, suitable for rotatory oscillating, reciprocating movements on the conditions of high load.low speed, low friction, well wear resistance, long lifetime and better prevent from holding-on. The bronze layer surface can be machined with various of grooves, oil pockets in terms of different work condition. The product is widely used in mining machinery, automobile, building machinery, agriculture equipment, rolling steel industry etc.
Đặc tính vật liệu (Material Characteristic)
| Material Trademark | Alloy Composition | Alloy Hardness | International Standard |
| JF-800 | CuPb10Sn10 | 70~100HB | SAE-797. DIN CuPb10Sn. JIS-LBC3. UNS C93700. Clevite F100. Daido L10. D. A. B. D57. Federal Mogul HF2. Glacier SY. Glyco66. Miba2. 1010.Taiho HF2. Kar l Schmiat KS940SSAE-797. DIN CuPb10Sn. JIS-LBC3. UNS C93700. Clevite F100. Daido L10. D. A. B D57. Federal Mogul HF2 Glacier SY. Glyco66. Miba2. 1010. Taiho HF2. Karl Schmiat Ks940s |
| JF-720 | CuPb24Sn4 | 45~70HB | SAE=799. GLYCO 68. JIS-LBC6. DAIDO L23. Claciersx. ACLF250 |
| JF-700 | CuPb30 | 30~45HB | SAE-783. GLYCO74. JIS-AJL |
| JF-20 | AlSn20Cu | 30~40HB | SAE-48. JIS-KJ3 |
| JF-930 | CuPb6.5P0.1 | 69~90HB |

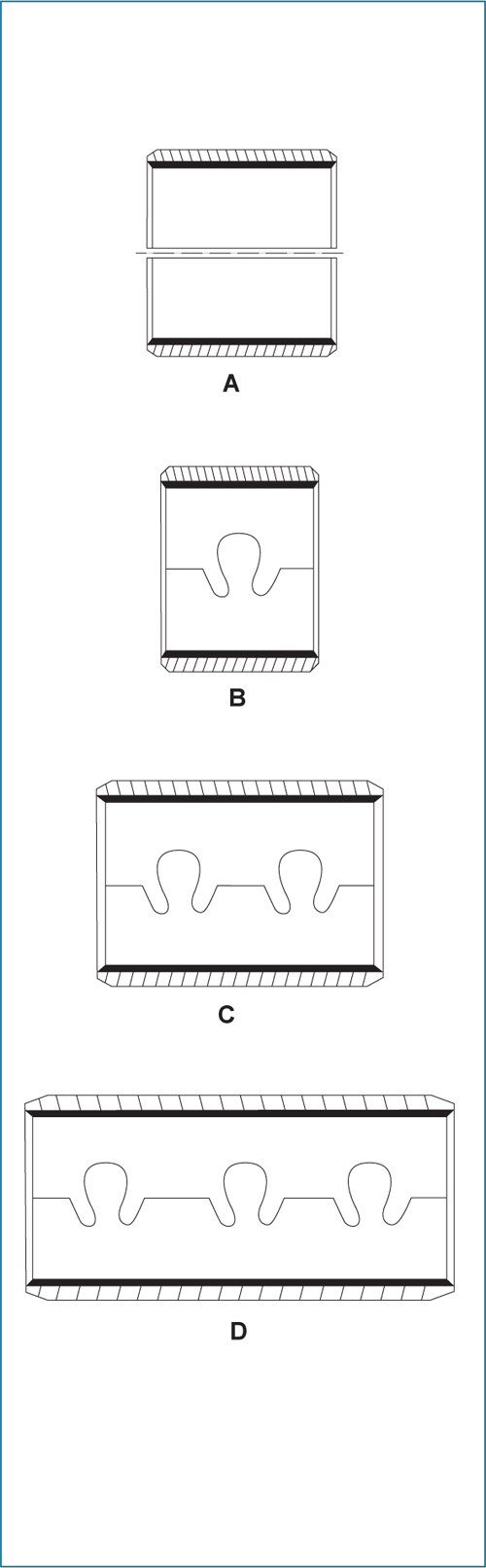

Bi-metal self lubricating bearings tank shape
Đặc tính vật liệu (Material Characteristic)
Kích thước
» Tiêu chuẩn: Sleeve Bearings, Flanged Bearings.
» Phi tiêu chuẩn: Sleeve Bearings, Flanged Bearings, Compound Thrust Washer, Strip, Bearings Bushing, Wear Strip, Steel combine Units.
Surface Roughness of Bimetal Bushes
| List | Bronze Surface | Bronze Surface |
| Bronze Surface | R20.8 | R26.3 |
| Steel Backing | R21.6 | R210 |
| Other Surface | R22.5 | R2100 |
Thông số kỹ thuật (Technical Data)
| Performance index | JF-800 | CNP-720 | CNP-700 | CNp-20 | CNP-930 | |
| Max Load Capacity P (N/mm2) | 150 | 130 | 120 | 100 | 150 | |
| Tensile Strength (N/mm2) | 185 | 150 | 200 | 200 | 185 | |
| Max Sliding Speed (Oil Lubrication) V(m/s) | 5 | 10 | 15 | 25 | 5 | |
| Friction coefficient (μ) | 0.05 ~ 0.20 | 0.06 ~ 0.16 | 0.08 ~ 0.16 | 0.08 ~ 0.17 | 0.06 ~ 0.16 | |
| Max PV Value Limit (N/mm2 m/s) | Grease lubrication | 2.8 | 2.8 | 2.5 | - | 2.8 |
| Oil lubrication | 10 | 10 | 8 | 6 | - | |
Application Characteristics
| Material Trademark | Using Conditions | Use Occasions |
| JF-800 | High resistance to fatigue strenth and load capacity, with high shock resistance good wearing and good corrosion resisitance. | Fit for middle load, high speed, bushes,washer and connecting rod bearing in internal combustion engine used in machinical equipment and high shock bushing. |
| JF-720 | Good resistance to fatigue strength and high load capacity,good performance of sliding, liable to be corrupted by lubricationg oil. | Middle load middle speed, principle axis of internal combustion engine. |
| JF-700 | Good resistance to fatigue strength, load capacity, shock resistance. | Principle axis of internal combustion engine, connecting rod bushing. |
| JF-20 | Good performance of anti-seizing, covering eyewinker, soft alloy be plated on working surface. | High speed, middle or low load, principle axis internal combustion engine. |
| JF-930 | Moderate fatigue strength, and load capacity, good wrrosion resistance good performance of bearing sliding. | High speed, low load, internal combustion engine half bearing, bushing used in compressing and refrigerating machine. |
